Understanding Compositional Structures in Art Historical Images using Pose and Gaze Priors

Symbolbild zum Artikel. Der Link öffnet das Bild in einer großen Anzeige.

21. Juli 2020

Contribution

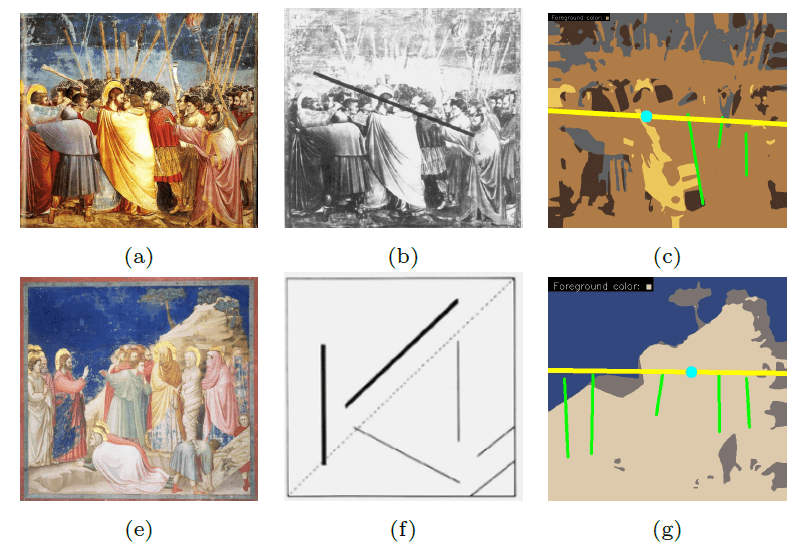

Inspired from the pioneer work of Max Imdahl [1], our work focuses on generating image composition canvas (ICC) diagrams based on two central themes: (a) detection of action regions and action lines of an artwork (b) pose-based segmentation of foreground and background. In order to validate our approach qualitatively and quantitatively, we conduct a user study involving experts and non-experts. The outcome of the study highly correlates with our approach and also demonstrates its domain-agnostic capability.

Outcomes

Proof of Concept for visual attention and similarity at how artworks are interpreted by humans and machines.
Can help art historians towards their sophisticated art analysis. This helps in saving lot of time.
A step towards understanding scenes without deep learning. This means not using annotated data; further using interpretable features for image retrieval.
Ways to exploit existing pre-trained models and methods in computer vision for better interpretation of scenes

Limitations

Currently, our approach works only for artworks comprising of protagonists (persons) in an image
No benchmark data-sets available and no evaluation metric exists, so quantitative evaluation is very difficult.
Our approach does not use state-of-the art gaze detection method, hence the gazes are not very precise.
No working applications shown so far

Overview of the Methodology

Authors: Prathmesh Madhu*, Tilman Marquart*, Ronak Kosti, Peter Bell, Andreas Maier, Vincent Christlein (* represents equal contribution)
Preprint: Link coming soon
ACM Published Link : Accepted, VISART, 2020 (Link coming soon)
Code: https://github.com/image-compostion-canvas-group/image-compostion-canvas

Definitions:
a) action lines : Global Action line (AL) is the line that passes through the main activity in the scene. This line normally is also aligned with the central protagonists. Local Action Line or Pose Line (PL) are the lines that represent the poses of the protagonists.
b) action regions : Action Regions (AR) is (are) the main region(s) of interest. More often than not it is the region where gazes of all the protagonists theoretically meet.

Our approach uses a pre-trained OpenPose [2] network, image processing techniques and a modified k-means clustering method. The pipeline of the proposed algorithm is shown in above figure.

Our method consists of two main branches: (1) a detector for action lines and action regions and (2) the foreground/background separator.

We use the estimated poses to detect pose triangles. We then propose a simple technique (gaze cones) to obtain gaze directions estimates without involving any training or fine-tuning. Combining this information, we draw a final ICC that estimates the image composition of the given scene under study.

Results

Quantitatively, we proposed using HausDorff (HD) distance as an evaluation metric between lines and Euclidean distance between action regions.
1. HD between all the annotators and ICC (ALL/ICC) is quite low (38 %) than the worst HD distance hence showing that the ALs of our ICC have very good correlation to all annotators.
2. We observed that when the annotators’ agreement for the position of AR was higher / lower, our method predicted AR closer / farther to the labeled ones

Qualitative comparison with User Study (Experts + Non-Experts)

User Study analysis. 1st row shows an example of The kiss of Judas, 2nd of annunciation and 3rd of COCO [3]. 1st column are original images; 2nd shows the Action Region (AR) by ICC (cyan), all Evaluators (Red) and the centroid of all annotators; 3rd and 4th show AL and PL by ICC and all annotators respectively; and 5th shows the eye-fixation regions.

Cross Domain Adaptability

Cross domain analysis. 1st row depicts Baptism, while the 2nd shows is annunciation, and the 3rd are images from COCO [3]. 1st and 3rd columns are original images, 2nd and 4th are their respective Image Composition Canvas.

References:

[1] Imdahl, M.: Giotto, Arenafresken: Ikonographie-Ikonologie-Ikonik. Wilhelm Fink (1975)

[2] Cao, Z., Hidalgo, G., Simon, T., Wei, S.E., Sheikh, Y.: OpenPose: Realtime Multi-Person 2D Pose Estimation using Part A_nity Fields. arXiv:1812.08008 [cs] (May 2019)

[3] Lin, T.Y., Maire, M., Belongie, S., Bourdev, L., Girshick, R., Hays, J., Perona, P., Ramanan, D., Zitnick, C.L., Doll_ar, P.: Microsoft COCO: Common Objects in Context. arXiv:1405.0312 [cs] (Feb 2015)
